Data Logging - Investigator




The Investigator is a general purpose tool that enables data to be captured and presented. You would use the Invesigator when there was no suitable Application or you wished direct control over the logging interval , number of readings, trigger level, input voltage range etc....

Data capture may commence with a digital or analogue trigger and in addition two outputs may be controlled during logging. If the voltage on a chosen channel is above/below a particular value then it can set an output high/low. The output may be latched if required.

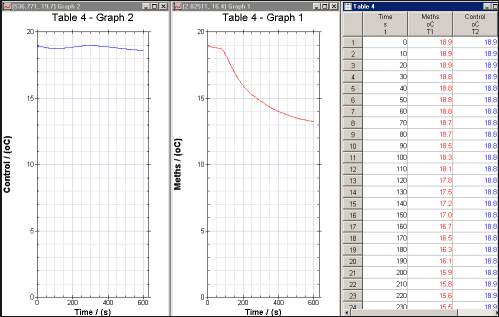

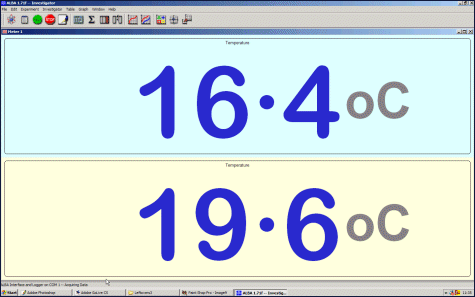

Sample screen shots of the Investigator setup are shown below along with the results of an experiment to show the cooling effect of meths evaporating.


Investigator1

Investigator2

Investigator3

Investigator4

Investigator5

Investigator6
