Screenshots - Electronic Balance

Below are some screenshots from setting up and using an A & D electronic balance with our Balance Software Add-on. The balance is connected to the ALBA Interface and Logger with a serial cable. If your PC does not have a serial port then you must use a USB/Serial converter lead.

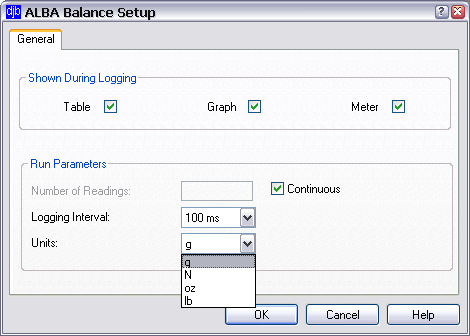

Balance SetupThis screenshot shows how simple it is to to set up the electronic balance.





















The Balance software running.

Balance Running





Rate of Reaction GraphRate of reaction results - chalk and acid. The graph shows the smaller surface area chips reacting quicker as they are losing weight faster.

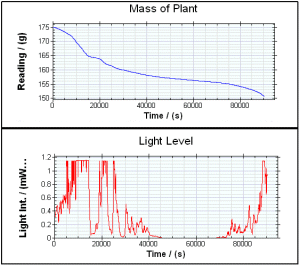

TranspirationTo study transpiration a plant was placed in a polythene bag on top of an A & D electronic balance and left for a couple of days.
