Internal Resistance Board

Back

Internal Resistance, A1-1065.00, £30.40

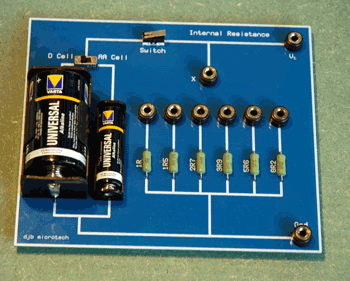

Internal Resistance BoardThe voltage is measured across six low value
2.5 W resistors.

Comparison can be made between the AA and D cells - internal resistance and maximum current.

It is hoped that students will see patterns - smaller resistors result in smaller terminal voltage and larger circuit currents.

Although this board was designed to be used with the ALBA Interface and Logger it can be used without a computer. Your ammeter should be connected between point X and the top of the resistor and your voltmeter across the resistor.

Supplied with batteries.

View Video

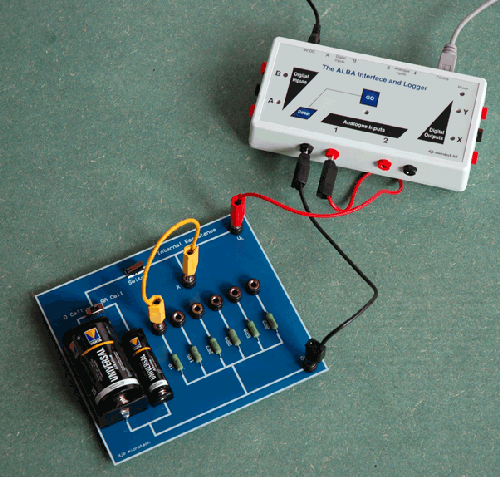

ConnectedInternal Resistance board connected to the ALBA Data Logger





























Typical Results

Internal Resistance Graph
