The Capacitor Investigations Board, A1-1030.00, £27.80

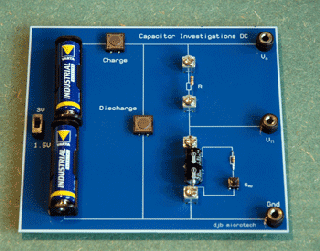

Capacitor Investigations BoardThe Capacitor Investigations board allows students to study the dc behaviour of capacitors. It was designed to be used with the ALBA Interface and Logger but it can also be used with a CRO/meters.

It is supplied with batteries, three additional capacitors and resistors.

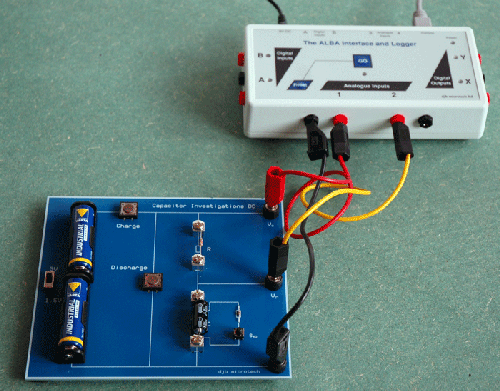

ConnectedThe Capacitor Investigations board connected to ALBA.





















Voltage/Time GraphBoth graphs below were logged and displayed live at the same time.

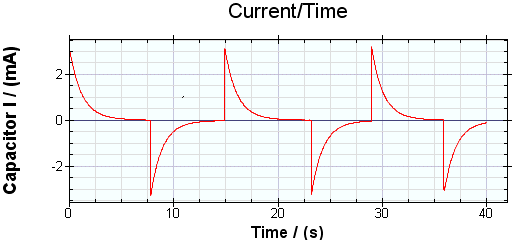

Current/Time Graph
